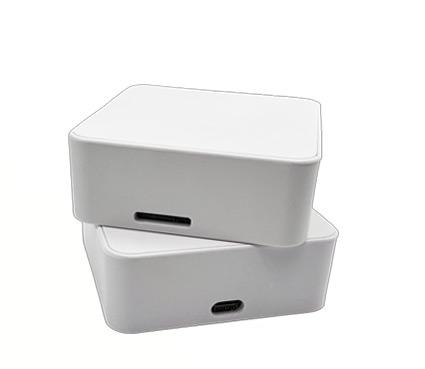

GEDB100 Human Falling Detection Radar
Physical signs detection radar is based on millimeter-wave radar mechanism to achieve human life object perception and human motion perception
Human Falling Detection Radar
GEDB100 is a human falling detector; when someone falls, the information will be immediately transmitted to the cloud server through the built-in 4G wireless module.
Users can observe their status information remotely. Data transmission is carried out through 4G, with high real-time performance.
GEDB100 is widely used in small-area single-person scenarios such as health care (toilet, bathroom), home security, and whole-house intelligence.
Features
- Fall alarm
- Timeout without action alarm
- Security detection
- Activity trajectory monitoring
- Non-contact monitoring
- Easy Installation
Network Diagram

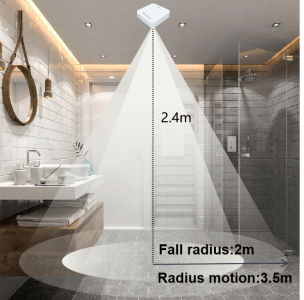

Sensing range
Top mounting
1) Installation height: 2.2m-3m
2) Installation position: directly above the detection area
3) Installation orientation: horizontally facing directly below
4) Personnel static detection range: height 2.4m, radius below radar 2m;
5) Personnel movement trigger range: height 2.4m, radius under radar 3.5m;
6) Fall warning detection range: height 2.4m, radius under radar 2m.
